PCI bus compatible
IPC429 Next generation 429 core
PCI bus 32-bit, 33MHz
Improved architecture to enhance performance
Performance Improvement and accurate timing control by means of On-board FPGA
Supports up to 16 Channels per card
  > 8 Transmit Channels
> 8 Receive Channels
Configurable for High Speed/Low Speed
Low host CPU load through FIFOs
Upto 256 Label memory for each Receive channel
128 Word Tx and Rx FIFOs for each Transmit and Receive Channel
Programmable interrupts
Asynchronous and Synchronous Messaging
Programmable Refresh rates of 20ms to 200ms
Label selective trigger for Capture/Filtering and SDI filtering
Driver & High-level API for Windows XP, Linux


The AT-PC104 Plus-429 card enables electronic systems to interface with commercial and military avionics data buses. They provide extensive functionality and are used to communicate with, simulate, test, and monitor ARINC429 equipment and systems. This high-density high-performance card is suitable for applications ranging from test equipment to rugged deployable systems. The card is designed to transmit and receive messages up to 16 channels. Up to 8 channels for Receive (Rx) and 8 channels Transmit (Tx) mode. Each channel is software configurable for high or low speed (12.5k/50k or 100k bits per second) and ARINC429 protocol requirements. The ARINC data word can be decoded and sorted based on the Label and SDI bits and stored in FIFOs. The card is integrated with powerful software that reduces development time. All databus functionality is supported from our advanced API (Application Programming Interface)

Software

The AT-PC104 Plus-429 software includes Drivers and APIs. The card comes with a powerful set of library functions to access the entire ARINC429 functionality. Source code is provided for samples, and detailed documentation. The drivers are designed in a modular fashion consisting of component functions & application functions. The users test program can be developed with few calls to the driver, by using the set of Application functions provided. Driver and high-level API libraries for Windows XP, Linux are available.

Bus Interface
PCI bus 32-bit, 33 Mhz
3.3V PCI bus operation
ARINC429 Interface
Supports up to 16 ARINC429 channels
  > 8 Transmit Channels
> 8 Receive Channels
128 Word deep FIFO on each channel
Programmable Interrupts
Built-in Fault Detection Circuitry
Set parity per channel (odd/even/data)
Sync output on all or selected messages
Message filters and schedules
Data rates: 12.5 kbps/50 Kbps in Low Speed and 100 kbps in High Speed
Filtering:Label and/ or SDI
Parity: Odd, even or none
Error reporting: Parity
Standard input levels: 6.5 to 13 VDC
Output levels: 10 VDC
Software Support
Driver and high-level API libraries for Windows XP & Linux are available
Sample applications provided

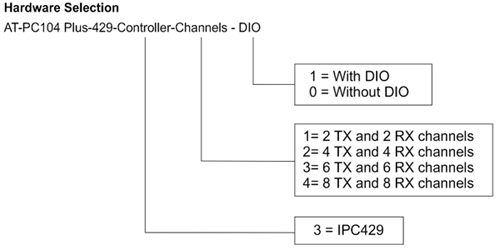

Physical
Standard PC104PLUS card size (3.55in x 3.75in)
Environmental
  Air Cooled Conduction Cooled
Operating Temperature 0C to +60C -40C to +85C
Power
Maximum Power consumption <10W
Warranty
1 year limited warranty
