COTS PRODUCTS > COTS DIGITAL / ANALOG PRODUCTS > BACKPLANE PRODUCTS > MEMORY CARTRIDGE BACKPLANE
Ruggedized memory cartridge is designed considering the memory requirement of Airborne Recording and Playback Systems. Memory backplane consists of two payload slots to accommodate two Quad SATA Carrier Boards. Quad SATA Drive is plugged into memory backplane and the entire setup is enclosed into the metal enclosure. The Memory cartridge interfaces to main VXS Backplane through EPXB series connectors

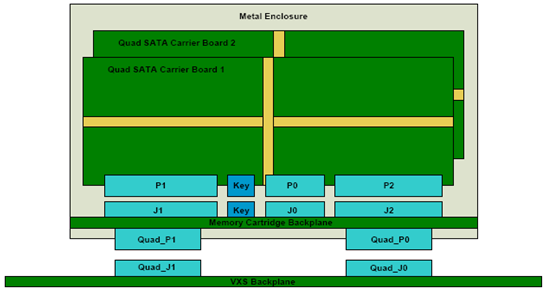

The Block diagram shows the side view of memory cartridge interfaced to main VXS Backplane
