XMC - x1 Lane PCIe, 2.5Gbps / PMC - PCI bus 32-bit, 33MHz
IPCDIO - DIO processing Core
Input types: TTL Differential, Open/Gnd, 27V/Open or Casing/Break inputs
Open/GND Inputs and Outputs - 8 Nos Each
27V/Open or Casing/Break Inputs and Outputs - 12 Nos Each
27V/Open or Casing/Break inputs are opto-isolated
Open/GND inputs diode protected
Output types: TTL Differential, Open/Gnd and 27V/Open outputs
Discrete Outputs can switch +27V load, either Low side or High Side
Interrupts programmable on discrete inputs
Programmable Baud Rates up to 115.2 k/Bauds
On-chip Timers for scheduled status reading of discrete inputs or drive of discrete outputs
Rear P16 or Rear P14 or Front I/O available

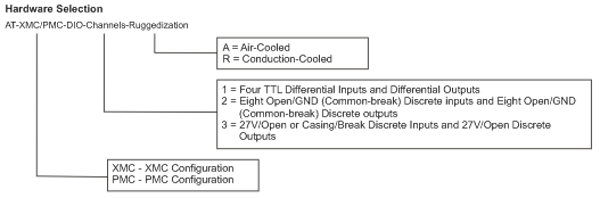

Available in two variants -Air Cooled, Conduction Cooled
High-level API for Windows XP, Windows 7 and Linux
LabVIEW drivers available optionally


AT-XMC/PMC-DIO is a slave mezzanine card, providing x1 Lane PCI-Express interface or 32-bit PCI interface with the host system. It provides interface to different types of input and output signals for the avionics domain user interactions. The XMC/PMC discrete I/O boards are designed to provide users with a high degree of reliability and flexibility to meet input-output requirements. They are ideally suited for stringent military and airborne applications. AT-XMC/PMC-DIO has implemented all its discrete I/O logic in the FPGA. All discrete inputs and outputs are accessed through registers implemented inside the FPGA.

Discrete outputs can be used to switch +27V/GND/OPEN type loads. AT-XMC/PMC-DIO provides a total of 40 nos of discrete I/O interface to the PCI/PCIe bus. Twelve nos are +27V/OPEN type or casing break type inputs, eight nos are of Open/GND type inputs and an equal number of respective outputs. The card provides I/O interface through front panel mounted 68-pin PCB mount right-angled VHDCI receptacle connector or though rear XMC user I/O connector J16 or PMC I/O connector JN4 for accessing the I/O through back plane. On-chip timers are used for scheduled status reading of discrete inputs or drive of discrete outputs.

Software
The AT-XMC/PMC-DIO software includes Drivers & APIs. The product comes with a powerful set of library functions to access the entire DIO functionality. The drivers are designed in a modular fashion consisting of component functions and application functions. The user’s test program can be developed with few calls to the driver by using the set of application functions provided. Driver and high-level API libraries for Windows XP, Windows 7 and Linux are available. LabVIEW drivers available optionally.
Bus Interface
XMC - x1 lane PCIe, 2.5Gbps (PCIe base specification 1.0a) or PMC - 32-bit, 33/66 MHz (PCI 2.2)
Discrete Inputs
TTL Differential Inputs - 4 Nos for XMC and 2 Nos for PMC
Open/GND (Common- break) Discrete Inputs - 8 Nos
27V/Open or Casing/Break configurable Discrete Inputs - 12 Nos
27V/Open or Casing/Break inputs are opto-isolated
Open/GND (Common- break) Inputs are diode protected
All Discrete Input Conditioning at TTL levels, level translated to 3.3V for internal use
Discrete Outputs
TTL Differential Outputs - 4 Nos for XMC and 2 Nos for PMC
Open/Gnd (Common-break) Discrete Outputs - 8 Nos
27V/Open Discrete Outputs - 12 Nos
Discrete Outputs can control +27V load, either low side or high side
Diagnostics
Testing of memory functions
Internal loop back
External loop back
Interrupt function testing
Others
Software control of outputs and status of inputs using a dedicated Digital Discrete IO FPGA Core
Discrete Inputs status changes by either polling or interrupt mode
On-chip Timers for scheduled status reading of discrete inputs or drive of discrete outputs
Discrete I/O
Optional Six Discrete Inputs & six Discrete Outputs
TTL outputs and inputs
I/O Configurations
I/O available on both front panel 68 pins VHDCI connector and rear connectors (P14 - PMC or P16 - XMC)
Standard configuration is P16 rear panel I/O
Software Support
Driver and high-level API libraries for Windows XP, Windows 7 & Linux
Sample applications will be provided
LabVIEW drivers available optionally
Physical
Standard Singlewide Mezzanine Card form factor confirming to IEEE 1386.1 (74 mm x 149 mm)
Conduction Cooled XMC/PMC Card without Bezel
Environmental
  Air-Cooled Conduction-Cooled
Operating 0ēC to + 60ēC -40ēC to + 85ēC
Power
Supply +3.3V and +5V from PMC Connectors when used as a PMC Card and all other voltages internally derived
Primary Supply +3.3V from XMC Connectors when used as XMC Card, all other voltages internally derived including +5V
Warranty
1 year limited warranty
