VME 6U Dual Slot (8HP) SBC
Compliant to IEEE STD 1101.2-1992 & ANSI/VITA 20-2001, VITA 30.1 VME64x Architecture
Compliant to IEEE STD 1101.2-1992 & ANSI/VITA 20-2001, VITA 30.1 VME64x Architecture
8Tx and 8Rx ARINC429 Channels
Single PMC/XMC mezzanine site
Three Digital Display Interfaces (DDI) for Display Port /HDMI/DVI/SDVO
Dual channel 18/24-bit LVDS
Linux, VxWorks OS are available
For other RTOS support contact sales
On Card COMExpress Computer On Module specification:
> Processor – Intel Core i7 Processor up to 2 Ghz
> 4 GB of DDR3 SDRAM with ECC
> NOR Flash Memory – Up to 32 MB
> NAND Flash Memory – Up to 16 GB
> 32 kB instruction and 32 kB data L1 cache per core
> 4MB L2 cache per core
> Up to 4 MB L3 cache, shared
> Two 10/100/1000 Gigabit Ethernet ports
> One High Definition Audio port
> Four USB 2.0 ports
> Four SATA ports
> Watch Dog Timer
> Real Time clock


The AT-VME-SBC-Corei7 board has a Computer On Module COMExpress plugged in to it. COMExpress is based on one of the ultra high performance, high-integration Intel Corei7 processor, and gives designers the choice of a complete, ruggedized systems requiring high bandwidth processing, based on the COMExpress form factor. Core i7 offers integrated graphics and memory controller and dual core processing up to 2 GHz. The module plugs into the card, which has connectors and additional circuitry to meet your application requirements.

The Computer On Module incorporates a 4 GB of SDRAM with ECC Protection, 32 MB NOR Flash memory, 16 GB of NAND Flash, Two Gigabit Ethernet ports, four USB ports, four SATA ports and One High Definition Audio port.

The AT-VME-SBC-Corei7 is equipped with On-board mezzanine expansion sites-one optional PCI 32-bit/66MHz PMC site or PCIe x4 XMC site, Three digital display interfaces, a number of user defined GPIO’s, two dual redundant 1553B channels and eight transmit and eight receive ARINC429 Channels. The AT-VME-SBC-Corei7 has implemented all its Discrete IO logic in the FPGA. All discrete inputs and outputs are accessed through registers implemented inside FPGA.

The card is particularly well suited to embedded applications and meets all the requirements such as power consumption, temperature range, quality, and reliability demands of embedded system applications. The card uses +5V, +3.3V and +12V from the Back Plane as primary supply voltages. All the internal Voltages required by FPGAs and various other peripherals are derived using on board regulators and DC-DC Converters.

The board is available in either Air-cooled or Conduction-cooled versions. Operating system support for VxWorks, Linux are available.

Memory
SDRAM

The board comes with up to 4 GB of DDR3 SDRAM. It is equipped with an Error Checking and Correction (ECC) mechanism providing a high degree of protection against errors. It is capable of detecting and correcting single errors while alerting when multiple errors arise. The ECC mechanism enhances the system reliability to a great extent.

PCI Local Bus

The SBC comes with separate PCI bus and is fully compliant to PCI Specs-Rev 2.2. PCI bus operates at 32-bit/33MHz bus providing a high-speed backbone for the local interconnects of on-board devices. PCI bus operates at 64-bit/66 MHz and is routed to one IEEE standard PCI Mezzanine Card (PMC) site.

VME Interface

The SBC includes the Tundra chip (Tsi148) PCI-VME bridge controller allowing the interface between the local PCI bus and the VME backplane. It provides a high performance VME64x bus interface. The VME interface provides full master and slave capabilities.

PMC Interface

Mounting a PCI Mezzanine Card (PMC) further enhances the capabilities of the SBC. The PMC expansion slot is compliant to IEEE 1386/1386.1-2001. The PCI bus running at 64-bit/66 MHz is connected to the PMC slot.

XMC Interface

X4 lane PCI express interface at 2.5 Gbps data rate. Single XMC site.

I/O Interfaces
Ethernet Interface

The AT-VME-SBC provides two 10/100/1000 Gigabit Ethernet ports.

USB

The SBC includes four USB Rev 2.0 ports providing high-speed, full-speed and low-speed signaling.

Video

Integrated in Processor: Intel® HD Graphics 4000 at 650-1300 Mhz Integrated Video: DirectX 11.0, OpenGL 3.1, and OCL 1.1 Media Processing:

Decode (HW JPEG & MJPEG decode), encode (full HW MPEG2 encode), transcode
Intel® Clear Video HD Technology + enhanced media processing VGA Interface
Analog VGA support with 300 MHz DAC
Analog monitor support up to QXGA (2048 x 1536) and VGA hot plug

LVDS Interface: Dual channel 18/24-bit LVDS
Digital Display Interface: Three DDI ports supporting HDMI / DVI / Display Port or SDVO

Test and Diagnostic Software

The SBC comes with a complete bundle of firmware containing the following modules:

Boot software for initialization
Monitor/Debugger tool
BIT/POST software
MIL-STD-1553B
2 Dual Redundant MIL-STD-1553B Channels
Supports MIL-STD-1553 A/B
Each channel is independently programmable as either Bus Controller, Remote Terminal or Bus Monitor
Complete message programmability
48-bit/100ns Time tagging
Direct or Transformer Coupled Bus Interface
ARINC429
8 Transmit and 8 Receive Channels
Configurable for High Speed (100 Kbps) or Low Speed (12.5Kbps/50Kbps)
Up to 256 Label memory for each Receive channel
128 Word for Tx and Rx FIFOs for each Transmit and Receive channel
Asynchronous and Synchronous messaging
Programmable Interrupts
Programmable Refresh rates of 20ms to 200ms
Label selective trigger for Capture/Filtering and SDI filtering
CPU
Processor: Intel Core i7
Clock Frequency: 2 Ghz
Intel QM57 chipset
Dual-core with hyper-threading technology
Integrated two channel memory controller
L2 Cache: 4MB
L1 Cache: 32 kB instruction and 32 Kb data cache
Memory
Global Memory: Up to 4 GB of DDR3 SDRAM
ECC: Standard
Nand Flash: Up to 16GB
VME Interface
VME64x backplane interface
A64/A32/A24/A16 master/slave
5 row connectors
XMC Interface
XMC – x4 lane PCIe, 2.5Gbps (PCIe base specification 1.0a)
PCI Interface
PCI 32/64 bit
33 or 66 MHz selectable PCI frequency
Fully compliant to PCI Specs- Rev 2.2
One PMC slot
I/O Interfaces
Four USB ports
One PMC/XMC mezzanine site
Two10/100/1000 Gigabit Ethernet ports
Environmental Temperature Range:
The temperature range for conduction-cooled boards are the operating card edge temperatures
Meets MIL-STD-810F standards for temperature, shock, vibration etc
Meets MIL-STD-461C Part-II standards for EMI/EMC
JTAG
On-board JTAG interface to the processor for debugging and development purposes
Mechanical
6U VME 64x dual slot (8HP) interface
Dimensions- 233.35mm x 160mm
As per IEEE 1101.10 – For Air-Cooled version
As per IEEE 1101.2 For conduction cooled version
Operating Systems
Linux, Vx-Works drivers support is available
Other BSP can be made available up on request

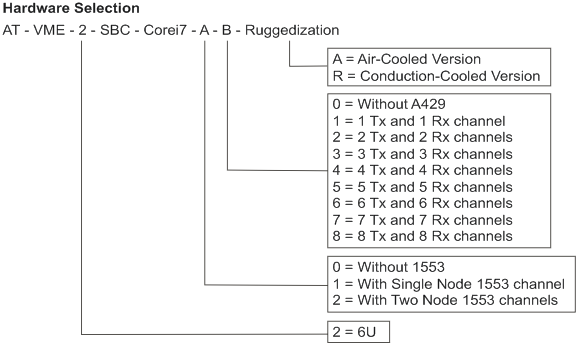

Warranty
1 year limited warranty
