Graphic Products - AT-XMC-GRA

	Based on Fujitsu’s MB86298 ‘Ruby’ Graphics Processing Unit
	512MB of on-board DDR2 Memory
	OpenGL ES 2.0 compliant
	PCIe - x1 PCI-Express (PCIe base specification 1.0a) Interface
	2D/3D graphics engine
	Two display controllers with display resolutions of 1280x1024 or 1600x600
	Four Independent Video Capture input channels
	> Two DVI-D inputs > One Analog RGsB input > One CVBS/S-Video/Component-Video (NTSC/PAL/SECAM) input
	Component and Composite Video Capture
	Two Independent Video Output Channels to connect standard monitors
	Provision for 24bit RGB Digital Output
	Independent Video Overlay of 8 layers on each display controller
	Air Cooled and Conduction cooled versions
	Driver and OpenGL support for Windows Xp, Linux 2.6.x, WindRiver VxWorks, Green Hills INTEGRITY, and their safety critical variants (Wind River 653, Green Hills INTEGRITY- 178B)

The AT-XMC-GRA is a new dual display graphics module providing a versatile, high performance graphics subsystem featuring high speed switched XMC Mezzanine module for Graphics solutions with PCIe as the bus interface. Using MB86298 ‘Ruby’ Graphics controller from Fujitsu, the module enables these systems to take full advantage of Fujitsu’s advanced graphics technology. A ruggedized, high-performance, low power dissipation, flexible and many more features make this card ideal for use in various high reliability embedded systems. These high-density high-performance cards are suitable for applications ranging from test equipment to rugged deployable systems. The AT-XMC-GRA module supports two independent high-resolution dual screen displays, each either VGA or DVI-D. The Module supports two DVI-D outputs and two Analog VGA outputs on P16 Connector. Two micro-HDMI connectors with DVI interface and VGA connectors may optionally be installed in the front panel area for development use. This module plugs into a standard XMC site on any compatible carrier and drives two independent displays through the full-size DVI-I and VGA ports on its front panel. Displays can have independent refresh rates, resolution and color control, offering great flexibility.

Hardware

The MB86298 ‘Ruby’ Graphics Display Controller combines high-performance New 2D/3D graphics engine with a general-purpose, programmable Unified Shader including support for the OpenGL shading language with a shading language compiler (SL Compiler) with an integrated DDR-2 SDRAM controller and a high speed x1 PCI-Express communications link. The GPU has two display controllers with maximum resolution of 1280 x 1024 or 1600 x 600 pixels with 8 layers of overlay per display controller. 4 alpha planes, either a constant alpha value or alpha from pixel data are available for blending on each layer. Four independent Video capture channels supporting SD video input with embedded syncs according to the ITU-R BT.656 standard, PAL and NTSC resolutions and frame rates, HD video input 720p progressive format according to the SMPTE 296M standard (50 and 60Hz frame rates) and DRGB888 type video input with dedicated sync signals are also available. The Module supports two DVI-D inputs from P16 Connector, RGsB (sync on green) input and one analog interlaced input PAL (CCIR/STANAG B) / NTSC (RS-170A/STANAG -C) composite video / S-VIDEO / Component Video. Optional 24bit RGB [888] output for direct digital interface to standard LCD modules. A combination of an intelligent board along with this module provides for a ready solution to build Rugged Smart Multi Function Display systems. All logic functionality on-board the module are implemented through an FPGA device. The FPGA is used as an I2C master to alternatively configure and control peripheral video processing devices. It also interfaces to GPIO’s for interrupts and SPI Debug Interface from Ruby controller.

Software

AT-XMC-GRA drivers are available for Windows XP/7, Linux 2.x running on Intel x86 platforms. Embedded graphics driver support including OpenGL ES 2.0, DO-178B Level A support is provided through Altsoft. Support for VxWorks 6.x, Integrity, VxWorks653 (Safety Critical) is also available.

Applications

	Military / Aerospace
	Industrial Control and Instrumentation
	Telecom / Datacomm
	Medical Imaging
	Embedded test systems
	Rugged deployed systems
	Demanding requirements
	Avionics upgrades and retrofits

Bus Interface

XMC - x1 lane PCIe, 2.5Gbps (PCIe base specification 1.0a)

Graphics Controller

	MB86298 ‘Ruby’ Graphics Display Controller
	Two independent display engines
	Multi-display capability (this lowers the maximum available resolution, color depth and refresh rate)
	OpenGL ES2.0 compliant
	2D/3D graphics engine
	Display resolutions of 1280 x 1024 or 1600 x 600
	Two display controllers with display resolutions of 1280x1024 or 1600x600
	24-bit color
	Independent Video Overlay of 8 layers on each display controller
	PCI Express interface
	512MB of on-board DDR2 Memory

Video Inputs

	Two DVI-D inputs
	One RGsB (Sync-on-Green) video input
	One Analog Interlaced PAL/NTSC/S-Video/Component Video Input
	All Video inputs on P16 Connector

Video Outputs

	Two DVI-D outputs
	Two Analog VGA outputs
	All Video outputs on P16 Connector
	Optional 24bit Digital RGB [888] output
	Optional Front panel VGA connectors and micro-HDMI connectors for DVI-D

Memory

512MB of on-board DDR2 Memory

Software

	Drivers for Windows XP/windows7, Linux
	OpenGL ES 2.0 from Altsoft
	Other multi OS/RTOS support
	Driver and OpenGL support for Windows XP, Linux 2.6.x, WindRiver VxWorks, Green Hills INTEGRITY, and their safety critical variants (Wind River 653, Green Hills INTEGRITY-178B)

Physical

	Standard XMC Card Size (143.75mm x 74mm)
	Complaint to IEEE 1386.1
	10mm Stacking Height
	Conduction Cooled XMC without Bezel

Environmental

	Air-Cooled	Conduction-Cooled
Operating temperature	0° C to +60° C	-40° C to +85° C

Powerl

Primary Supply +3.3V from XMC Connectors (P15), all other voltages internally derived

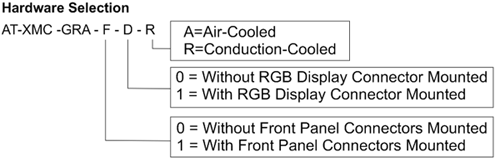

Warranty

1 year limited warranty
