Type II PC Card
Based on 16 bit PCMCIA Architecture
DDC Controller
Programmable as Bus Controller or Remote Terminal or Monitor Terminal
64K words of Static RAM
Single dual redundant MIL-STD-1553B channel
Direct or Transformer Coupled
Flexible RT Data Buffering with Circular Buffer
16 Bit Time Tag with 2µSec Resolution
Windows XP, Linux and RT-Linux driver support


The AT-PCC-1553 card provides a flexible, single function, dual redundant MIL-STD-1553B interface to the PC card socket. The card can be used with a laptop, notebook PC, a desktop PC, or any other device that has PC Card interface. The AT-PCC-1553 is based on Type II PC Card architecture and offers Simulation, Monitoring functions. The card is integrated with powerful software that reduces development time. All data bus functionality is supported by our advanced API (Application Programming Interface).

Hardware

The AT-PCC-1553 card comes with a single dual redundant MIL-STD-1553B channel. Configured with a controller from DDC, it provides 64K of Static RAM. Built around the 16-bit PC Card architecture, the card provides a rugged interface to mobile computers and devices. It operates at 5V thus saving battery life of the host PC. The card single function architecture can emulate as a Bus Controller or 31 Remote Terminals or Monitor Terminal modes.

Transformer and Direct Coupling

Suitable cables are to be used for either of the configurations. It is configured to work in the transformer-coupled mode by default.

Software

The AT-PC104-1553 software includes:

> Bus Monitor

> Drivers & APIs

Bus Monitor
Record and replay of data
Replay with rate selection
Message identifier
Multi console at a time
Bus ideal time analyzer
Filtering option up to sub address
Message sampling option
Drivers & APIs
The AT-PCC-1553 card comes with a powerful set of library functions to access the entire MIL-STD-1553B functionality. The drivers are designed in a modular fashion consisting of component functions and application functions. The user’s test program can be developed with few calls to the driver by using the set of application functions provided. Driver and high-level API libraries for Windows XP, Linux and RT-Linux. Sample programs for BC, RT, MT modes are included.
MIL-STD-1553B Interface
Type II PC Card
16-bit PCMCIA architecture
Programmable as Bus Controller or 31 Remote Terminals or Monitor Terminal
64K words internal memory
Single dual redundant MIL-STD-1553B channel
Message formats BC-RT, RT-BC, RT-RT, Broadcast, System Control
Direct or Transformer coupled - Optional
Bus Controller
64K words of SRAM per channel for DDC controller
Automatic retries on alternate Bus
Inter-message gap times up to 65.5ms
Programmable response timeout up to 130µs
Remote Terminal
Programmable command illegalization
Programmable Single Message or double buffering or circular buffering
BUSY Bit programmable by sub address
Alphanumeric message ID
Monitor Terminal
Word monitor
Selective message monitor
Dynamic data update
Message Periodicity
Bus error status
Busload
Unique Message identifier
Record and Replay option
Message identifier
Software Support
Driver and high-level API libraries for Windows XP, Linux and RT-Linux
Sample applications provided

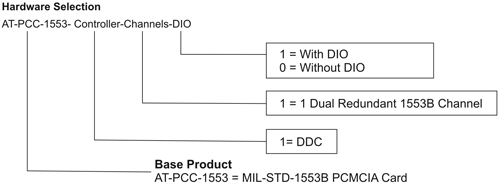

Physical
Type II PC card
Card dimensions - 54.0 x 85.6 x 5 mm
Environmental
Operating temperature: 0° C to +50° C
Storage temperature: -20° C to +70° C
Power
+5 VDC, 1A
Warranty
1 year limited warranty
